SMD capacitance testing
The page has unconfirmed changes. Use the buttons below to see older versions.

How to test a SMD capacitor?

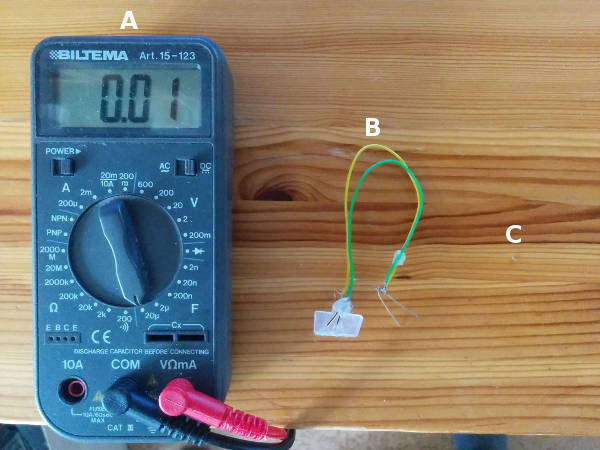

A) Multi meter with through hole capacitor tester, B) Home made tester, C) SMD capacitor with unknown capacitance

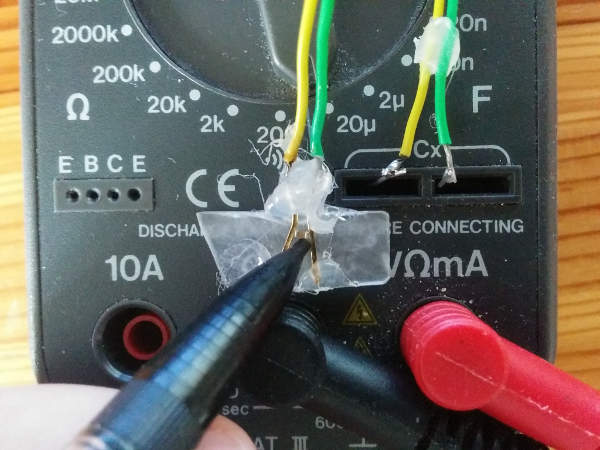

Testing the capacitor by pushing it towards the conductors.
If you like me reuse SMD capacitors it could be good with a way to test them. Unfortunately the multi meter I have can only test through-hole capacitors, so, I created this tester.
